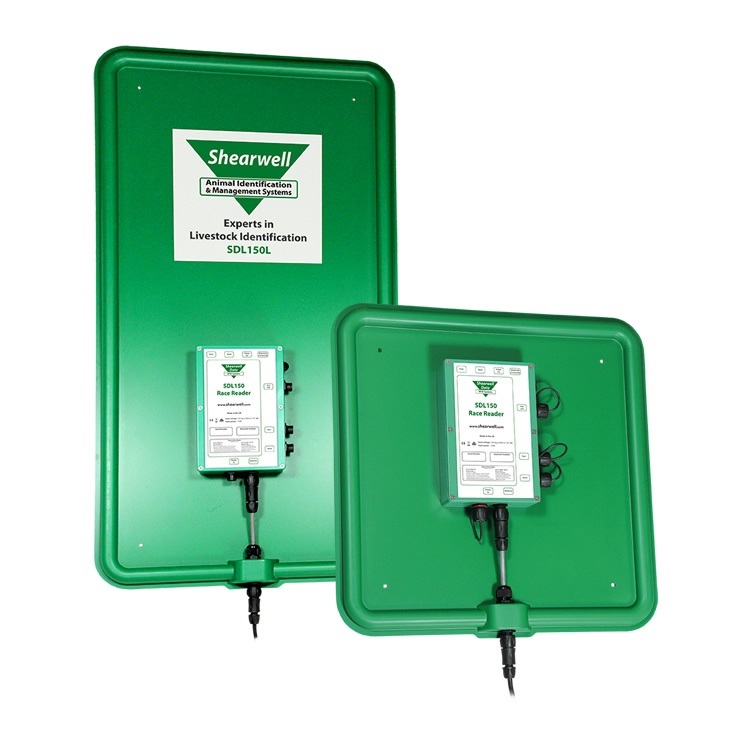

EID Panel Readers - SDL150

Shearwell’s modular EID Readers, with large and small versions are suitable for both sheep and cattle.

The EID number can be sent by Bluetooth to a Shearwell app or a compatible weigh scale for fast, hands free recording. Designed to cope with a high volume of animals, these units can be expanded as required.

Both large and small versions are available as a pair of antennas with a built in reader; as a single antenna with a built in reader; or as an additional antenna.

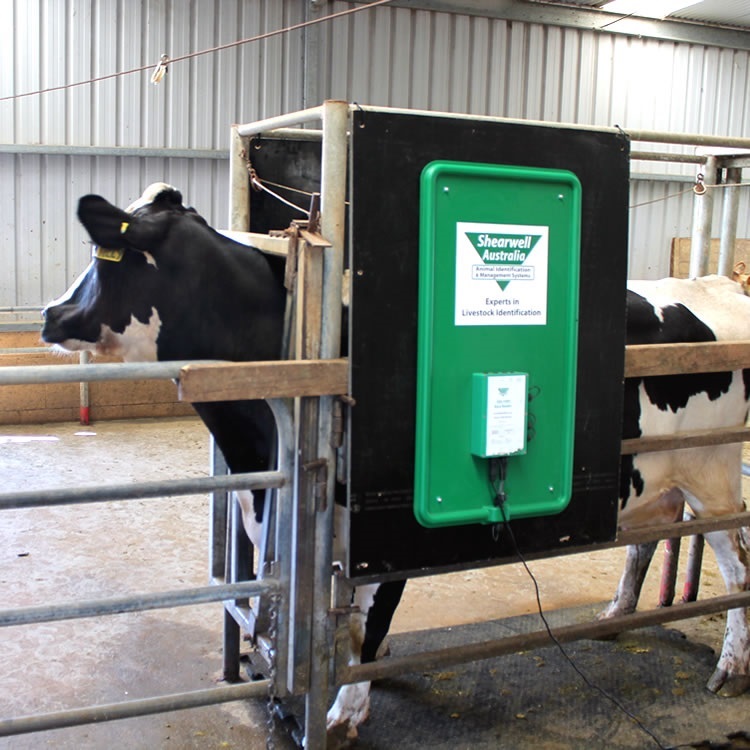

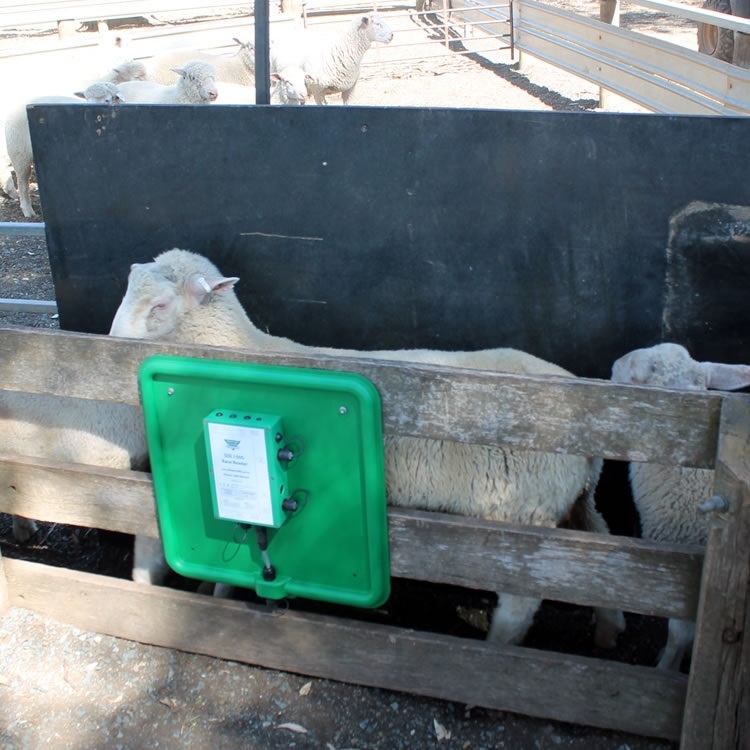

They can be configured quickly and easily within an existing set-up (non-metallic race) for fast, effortless recording of EID tags as stock run through the race.

Please call for more details: 0800 79 99 89

Dimensions


SDL150S - Small:

• Height 53cm
• Width 52cm
• Weight Pair - 6.8kg


SDL150L - Large:

• Height 98cm
• Width 52cm
• Weight Pair - 10.45kg

Technical Spec


Tag Output

The SDL150 outputs each tag it reads over Bluetooth, Bluetooth LE or an RS232 serial cable. The format is set to ISO Format 15 or 16 decimal characters terminated with CR or LF.

Connectors

• Serial Port: 9 way D male
• 12V DC
• IEC male mains power socket
• External antenna connector

Power Supply

• 12V DC
• 230V AC 50Hz
Picture of SDL150S - Small Panel Reader - Pair
SDL150S - Small Panel Reader - Pair

Recommended for maximum reading coverage
Please call for more details: 0800 79 99 89
Call for pricing
Picture of SDL150S - Small Panel Reader - Single
SDL150S - Small Panel Reader - Single

Please call for more details: 0800 79 99 89
Call for pricing
Picture of SDL150S - Small Panel Reader - Additional
SDL150S - Small Panel Reader - Additional

(antenna only)
Please call for more details: 0800 79 99 89
Call for pricing
Picture of SDL150L - Large Panel Reader - Pair
SDL150L - Large Panel Reader - Pair

Recommended for maximum reading coverage
Please call for more details: 0800 79 99 89
Call for pricing
Picture of SDL150L - Large Panel Reader - Single
SDL150L - Large Panel Reader - Single

Please call for more details: 0800 79 99 89
Call for pricing
Picture of  SDL150L - Large Panel Reader - Additional
SDL150L - Large Panel Reader - Additional

(antenna only)
Please call for more details: 0800 79 99 89
Call for pricing
